Description

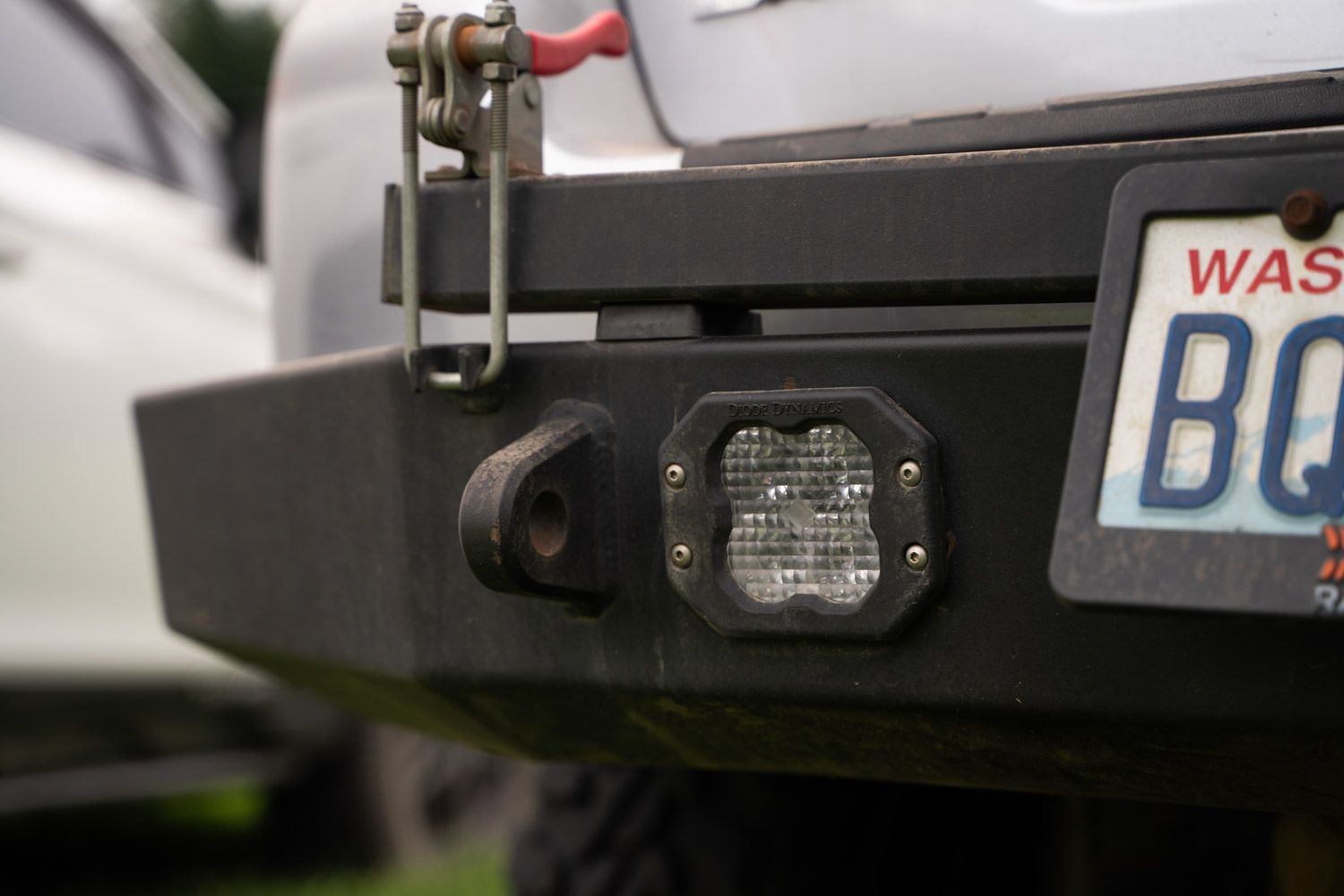

- Allows for flush installation on bumpers and truck beds
- Advanced TIR optics provide high efficiency and focus
- Available in SAE Driving, SAE Fog, Flood, or Combo beam patterns
- Pin-fin heatsink design, for superior thermal dissipation

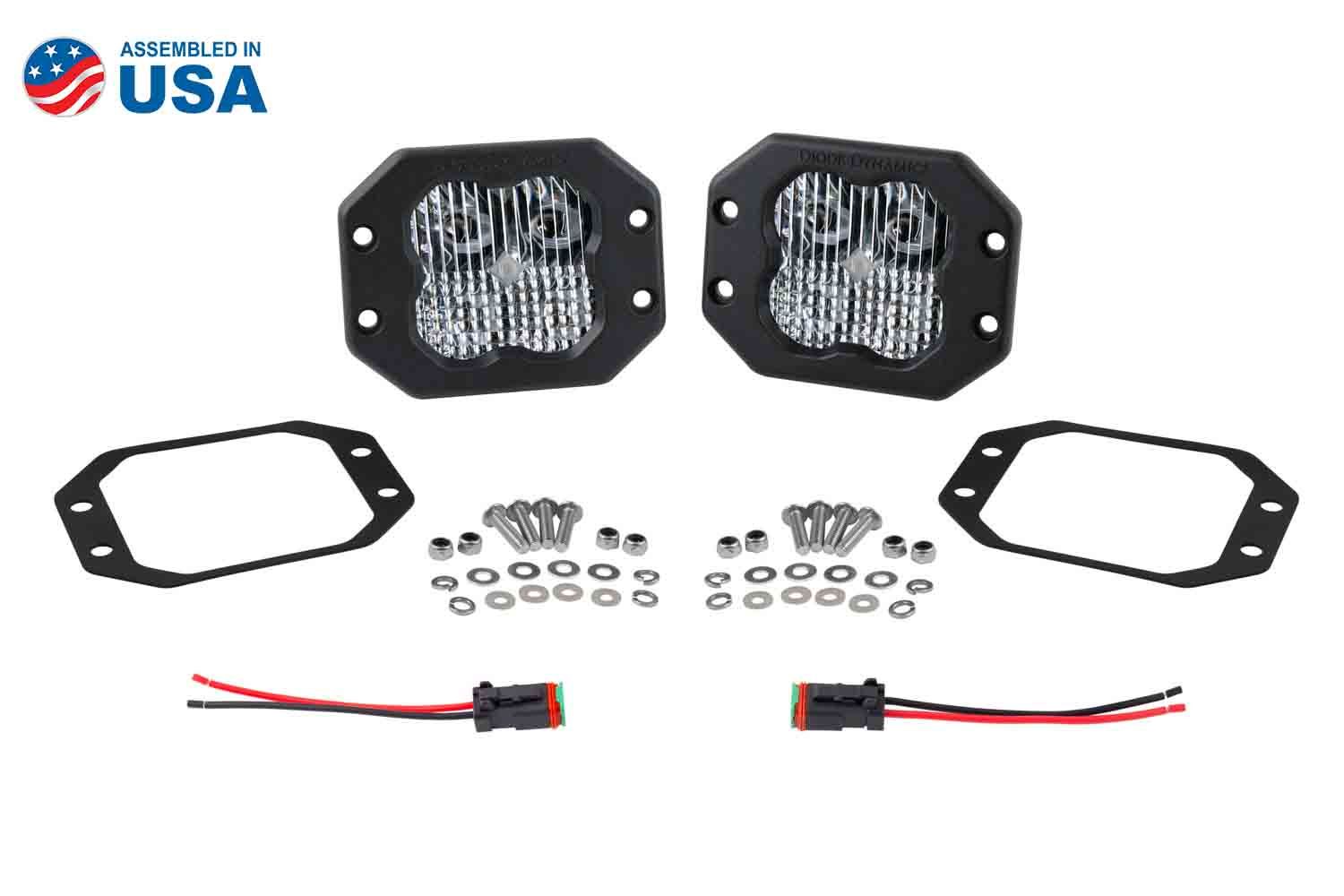

- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
- Engineered and Assembled in USA

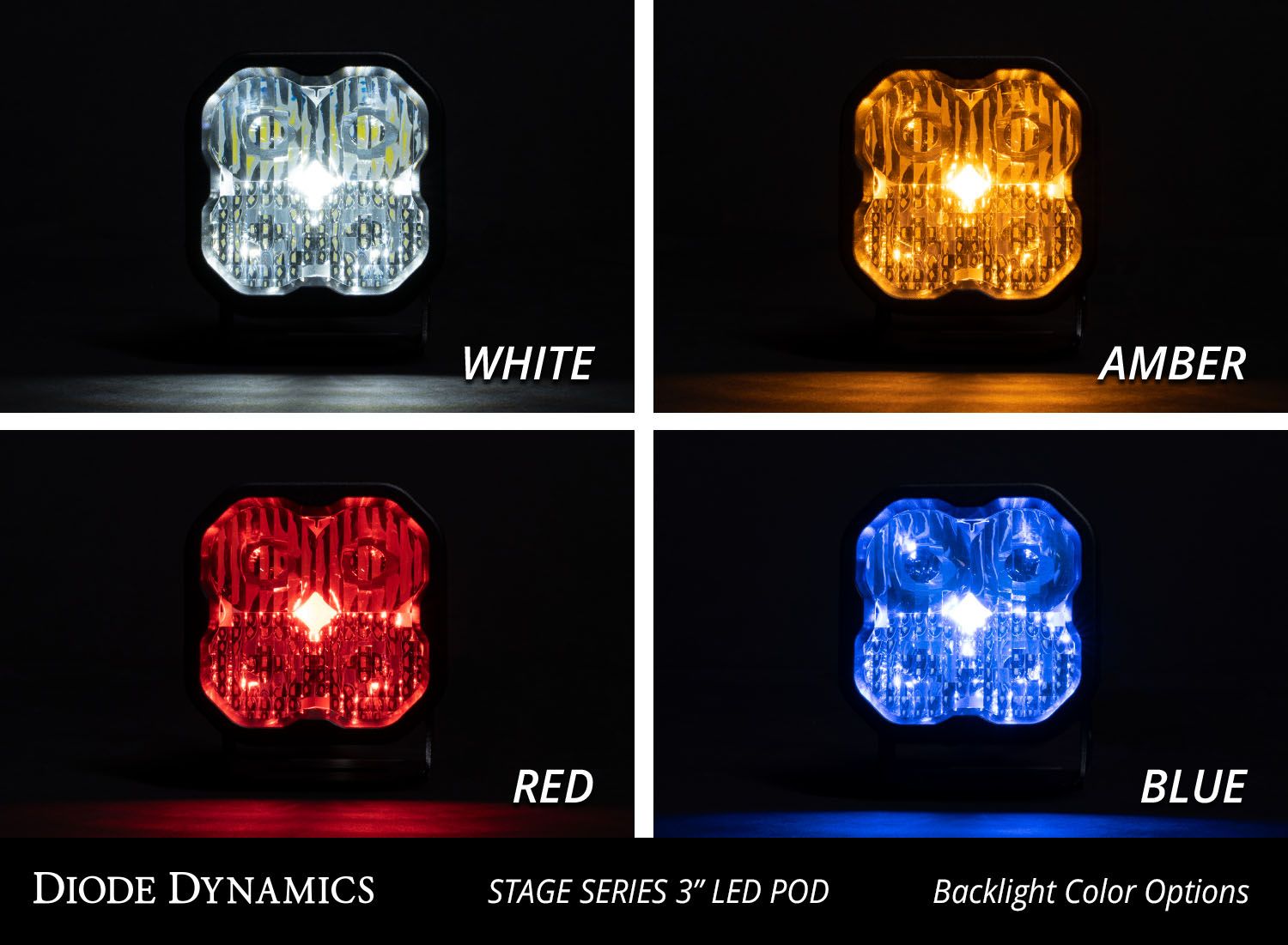

Operating Voltage:Â Backlit: 9-30V, Non-Backlit: 9-16V
Color Temp (CCT):Â 6000K
Power (watts):Â Main Beam: 36, Backlight: 0.4
Current (amps @ 12.8V):Â Main Beam: 2.7, Backlight: 0.03
Polarity:Â Polarity Specific
Operating Temperature:Â -40C to 85C (-40F to 185F)
LED Emitter:Â Cree XP-L HI
Connector(s):Â Deutsch DT Input
Driver Features:Â Constant Current
Cooling:Â Passive, Pin-Fin heatsink
Intrusion Ratings:Â IP69K Waterproof, High Pressure
Product Dimensions (in):Â 3.75 x 4.75 x 2.4
