Description

WELCOME SEQUENCE

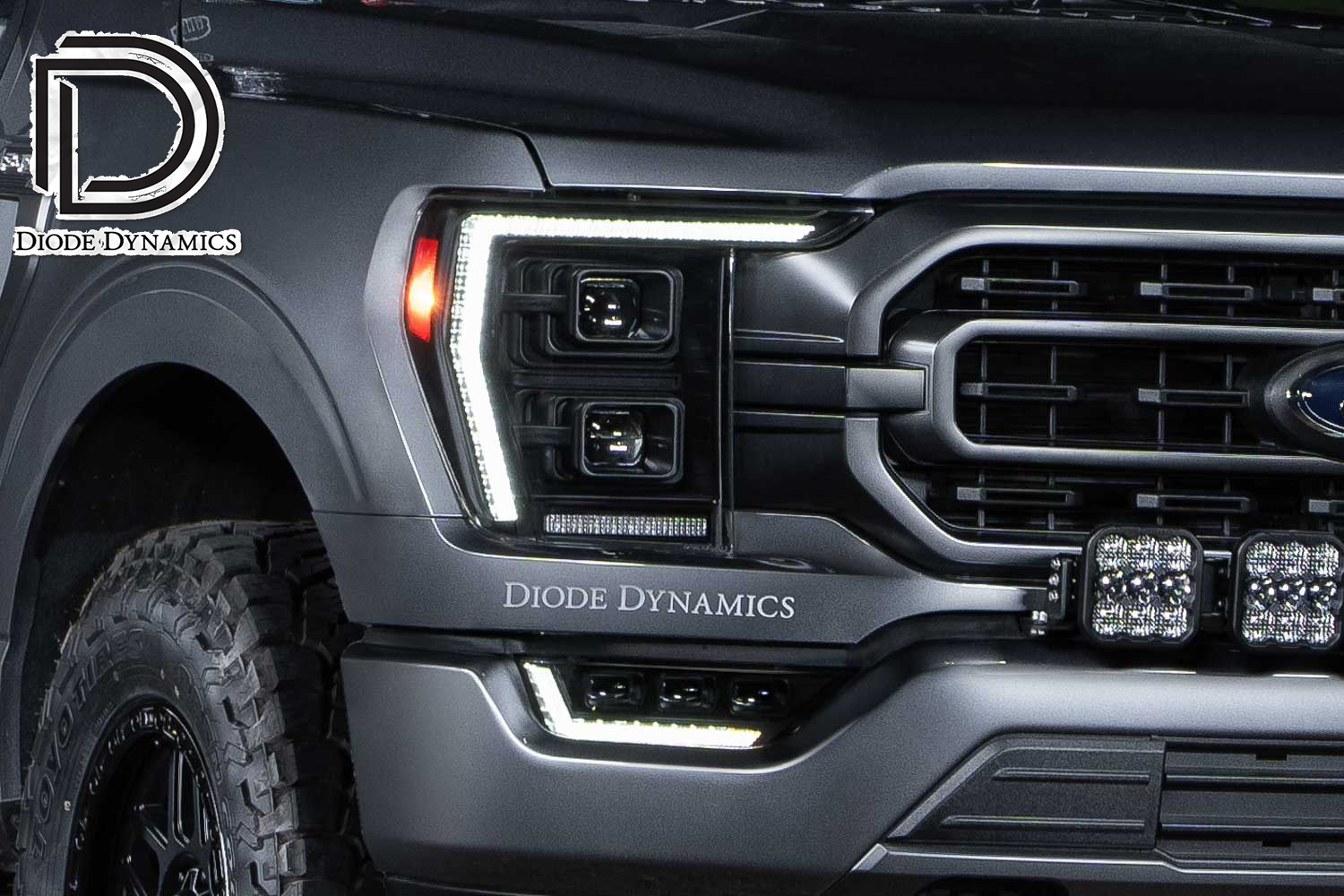

Upon start-up, the Elite Series Headlights will gradually illuminate the LEDs showing off their capabilities, and providing your F-150 with an exceptionally modern appearance.

SELECTABLE DRL
These Elite Series Headlights feature a customizable daytime running light (DRL). You can choose between white or amber, and you can add or remove the horizontal bar. All of this can be programmed from inside the vehicle, using existing controls.

SEQUENTIAL TURN SIGNAL

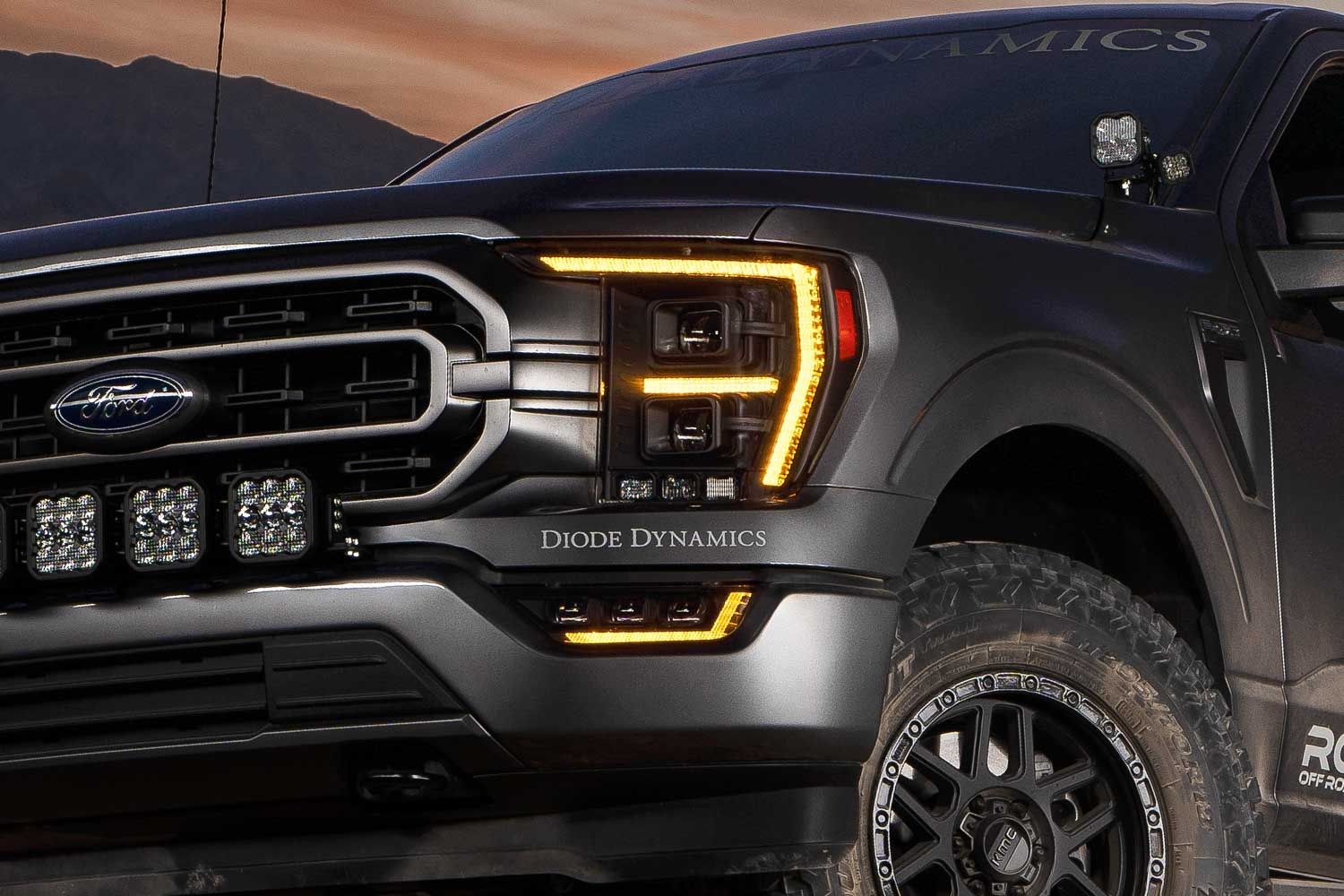

When the turn signal is activated, the horizontal DRL bar sequences outboard with bright amber output, while the perimeter blade flashes in a static pattern. Once you’ve completed your turn, the lights will switch back to your selected DRL color.

MAXIMUM LIGHT OUTPUT

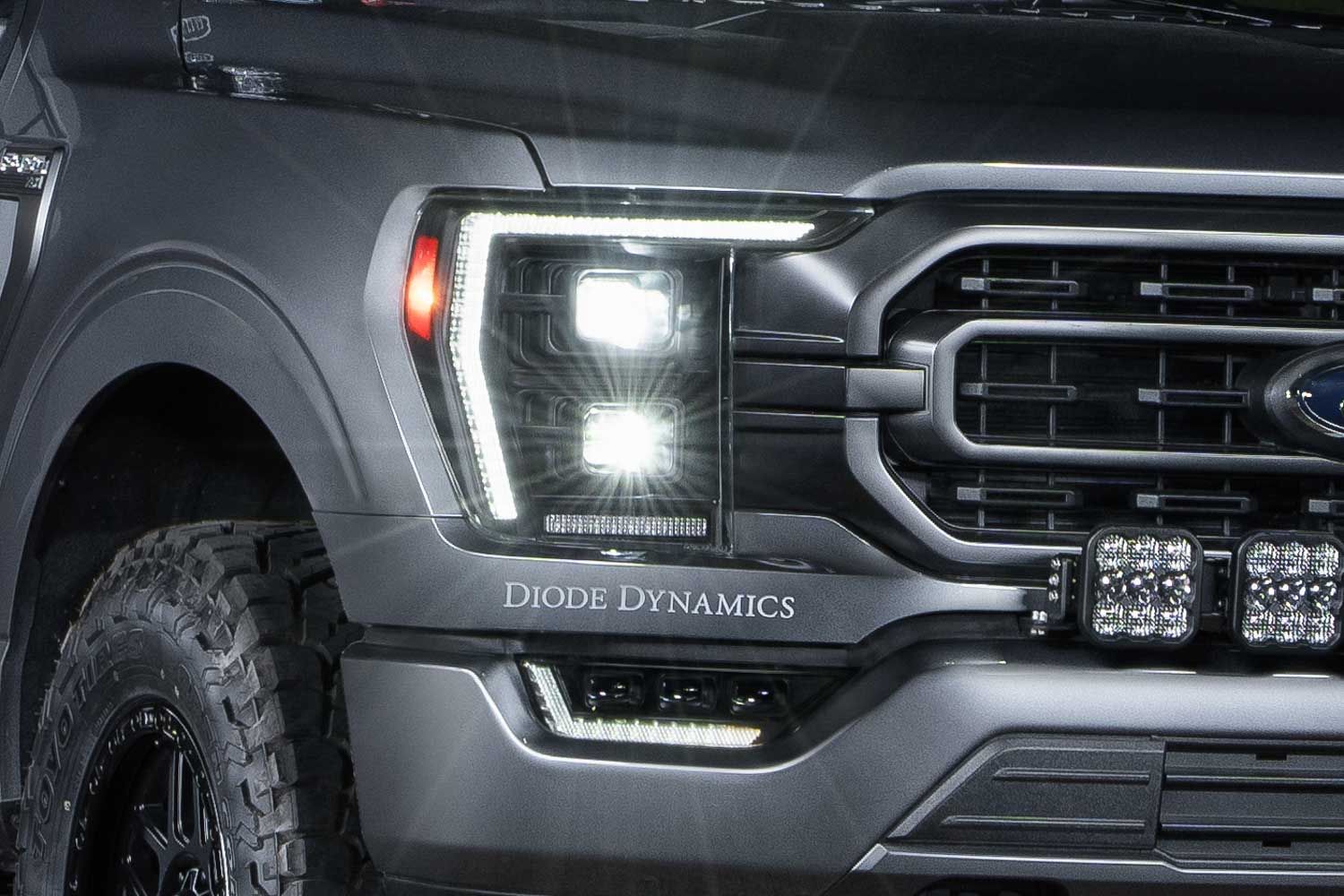

With two modern, rectangular bi-LED projectors for the low beam and high beam, these units provide a sharp cut-off, excellent width coverage, and nearly double the peak intensity of the factory projector lamps.

Measured Lumens: Low Beam: 665, High Beam: 1210, Offroad: 1720
Intensity (cd): Low Beam: 89100, High Beam: 106200, Offroad: 102150
Color Temp (CCT): 6000K
Power (watts): Low Beam: 30, High Beam: 43, Offroad: 61
Operating Voltage: 9-16V
Current (amps @ 12.8V): Low Beam: 2.3, High Beam: 3.4, Offroad: 4.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: OE Quality LED Projector, 3030 Bicolor
Connector(s): OEM-Size Plug and Play
Driver Features: Internal, Linear Regulated, Constant Current
Materials: Aluminum PCB, UV Coated Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof

Brand

Diode Dynamics
