Description

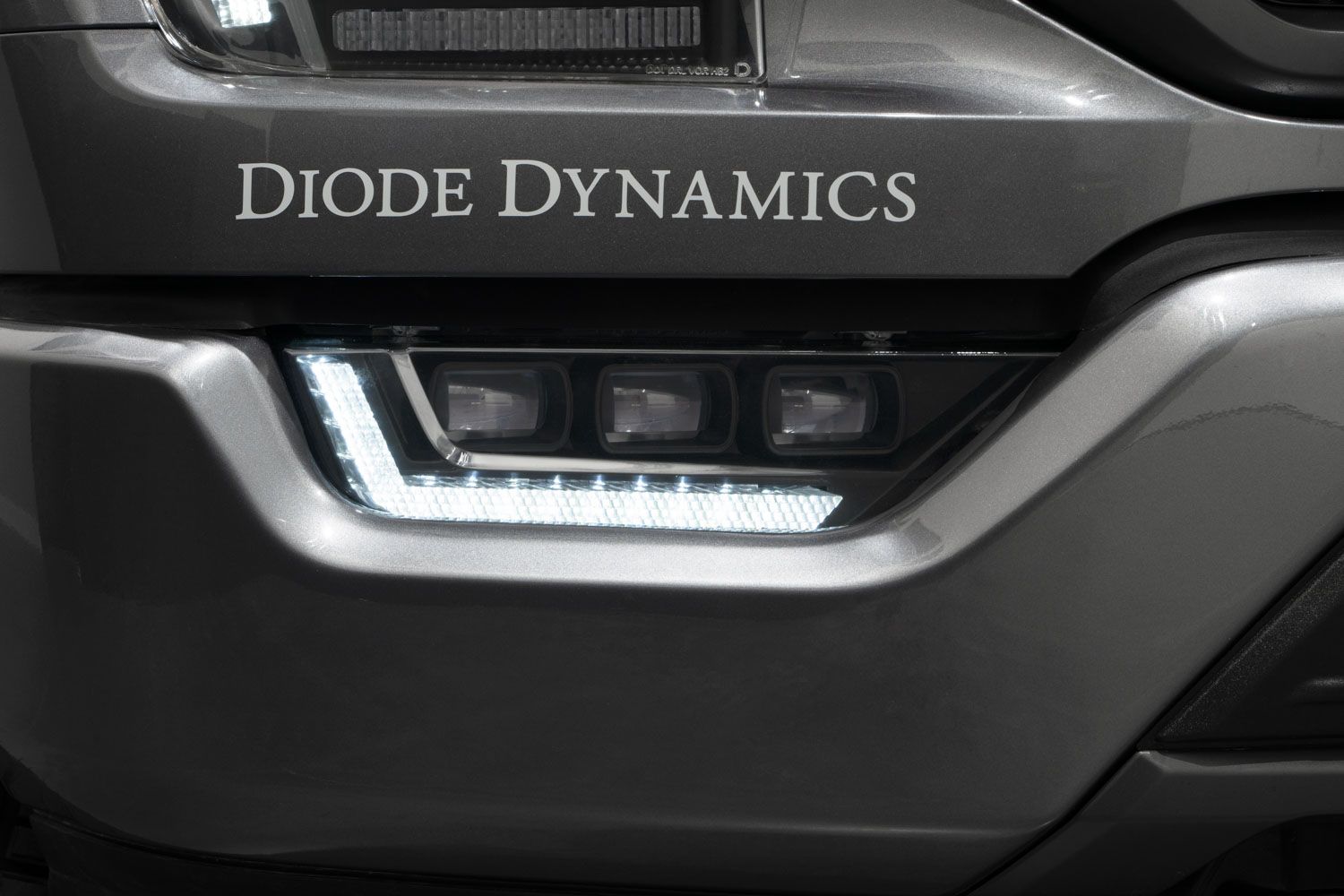

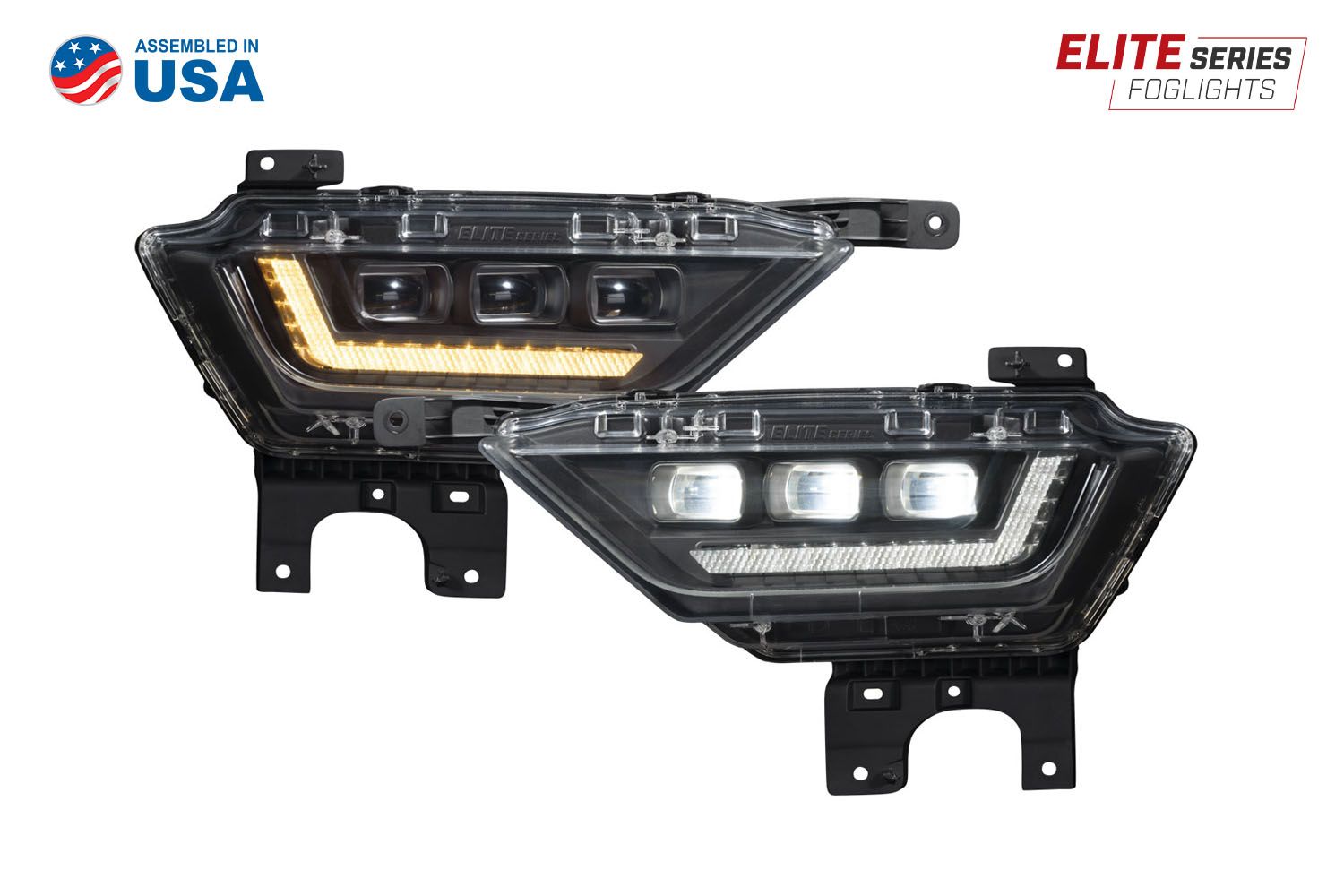

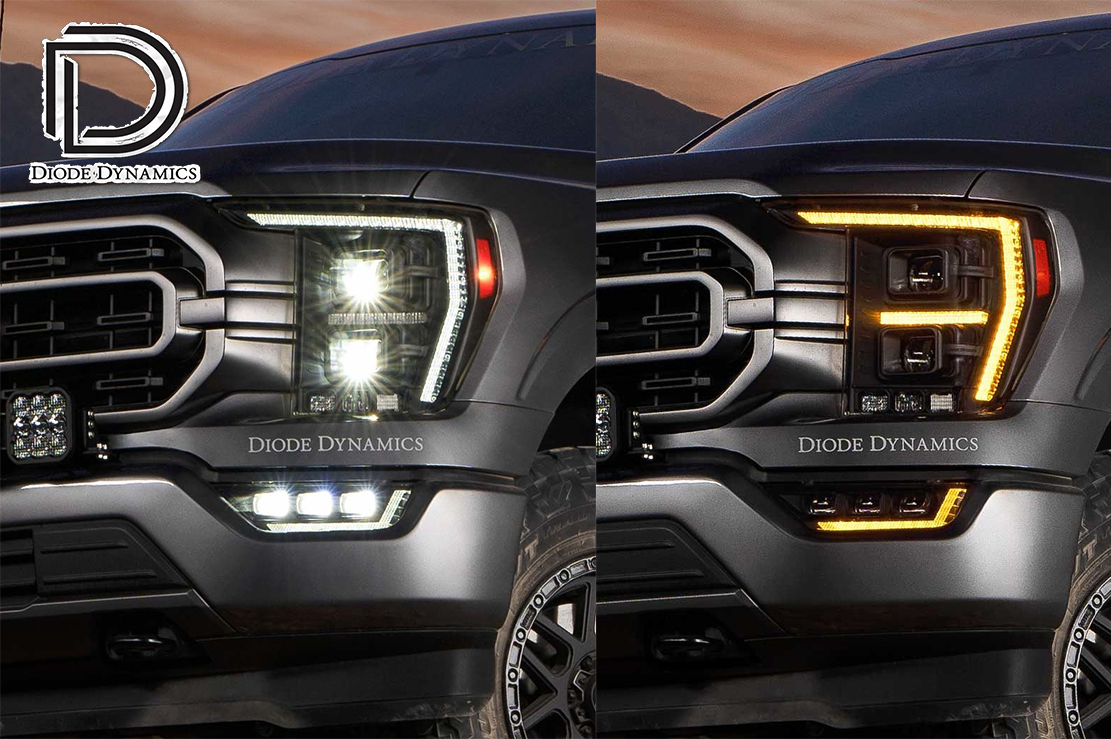

Welcome Sequence. When you’re ready to hit the road, your Elite Series Fog Lights will show off their capabilities with a gradual illumination of the LEDs. This provides an unmistakable indicator of the modern technology packed inside. If you have our Elite Series Headlights for the 2021+ F-150 installed as well, they will both illuminate in a coordinated sequence, thanks to the included communication wire. Note that the startup sequence is programmable, and can be easily disabled if desired.

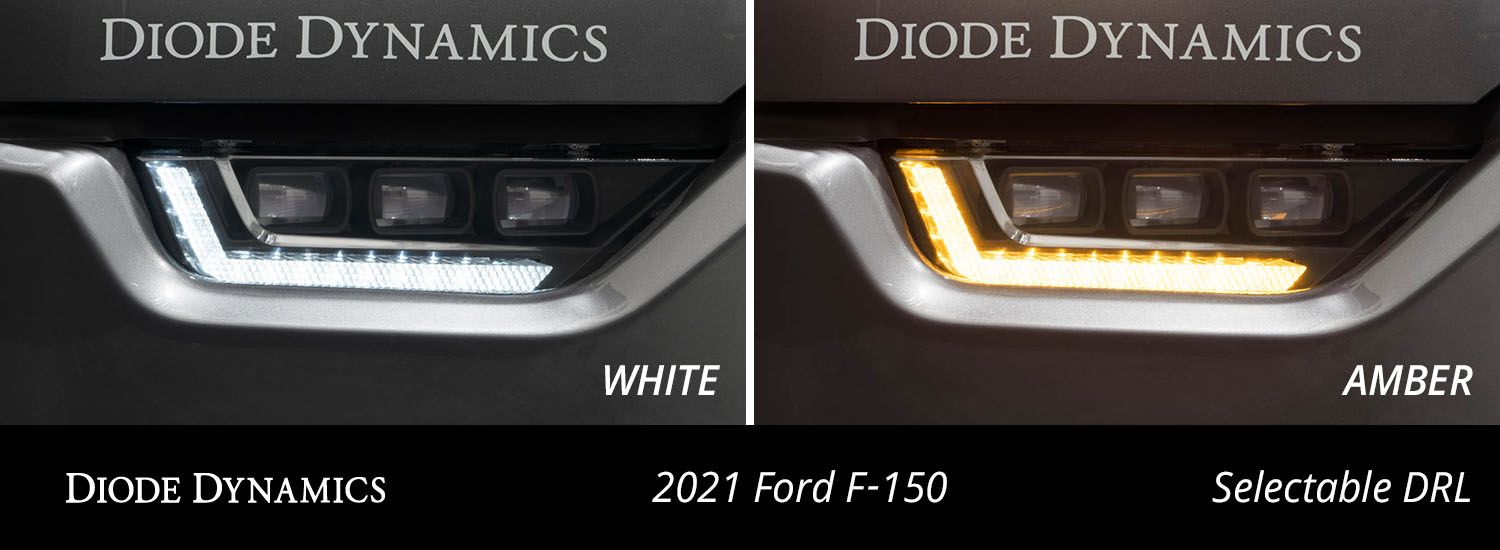

Selectable DRL – On the Fly. These fog lamps feature a selectable DRL, to customize the style of your truck. They are built with solid blade-style optics for a truly premium look. You can choose between a crisp white and amber color. The best part? You don’t even have to pop the hood. Our patent-pending technology allows you to program your foglamps from inside the vehicle, using existing controls. No extra switches, wires, or controllers required!

NOTE: Elite LED foglamp output data is coming soon!

Color Temp (CCT): 3000K, 6000K
Operating Voltage: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, 3030 Bicolor
Connector(s): OEM-Size Plug and Play
Driver Features: Internal, Linear Regulated, Constant Current
Materials: Aluminum PCB, UV Coated Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Compliance Ratings: SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP67 Weatherproof

Brand

Diode Dynamics

Compatible vehicles

MakeModelYearBrand
CadillacCTS-V
CadillacEscalade
ChevroletChevrolet
ChevroletSilverado 2500 / 3500 HD
DodgeChallenger
DodgeCharger
DodgeDodge
DodgeRam 1500
FordF-150
FordFord
