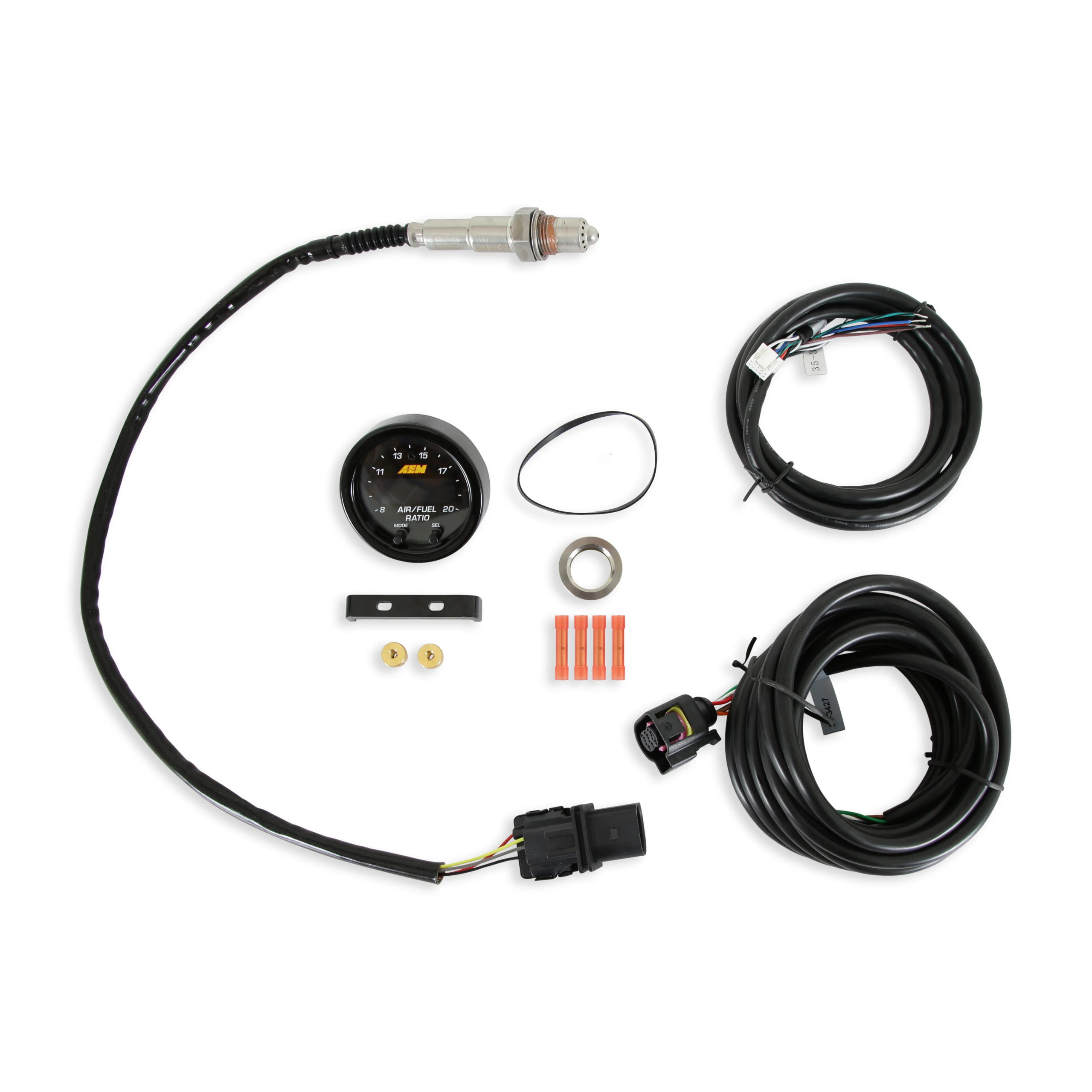

AEM Digital Air / Fuel Ratio Guage Universal

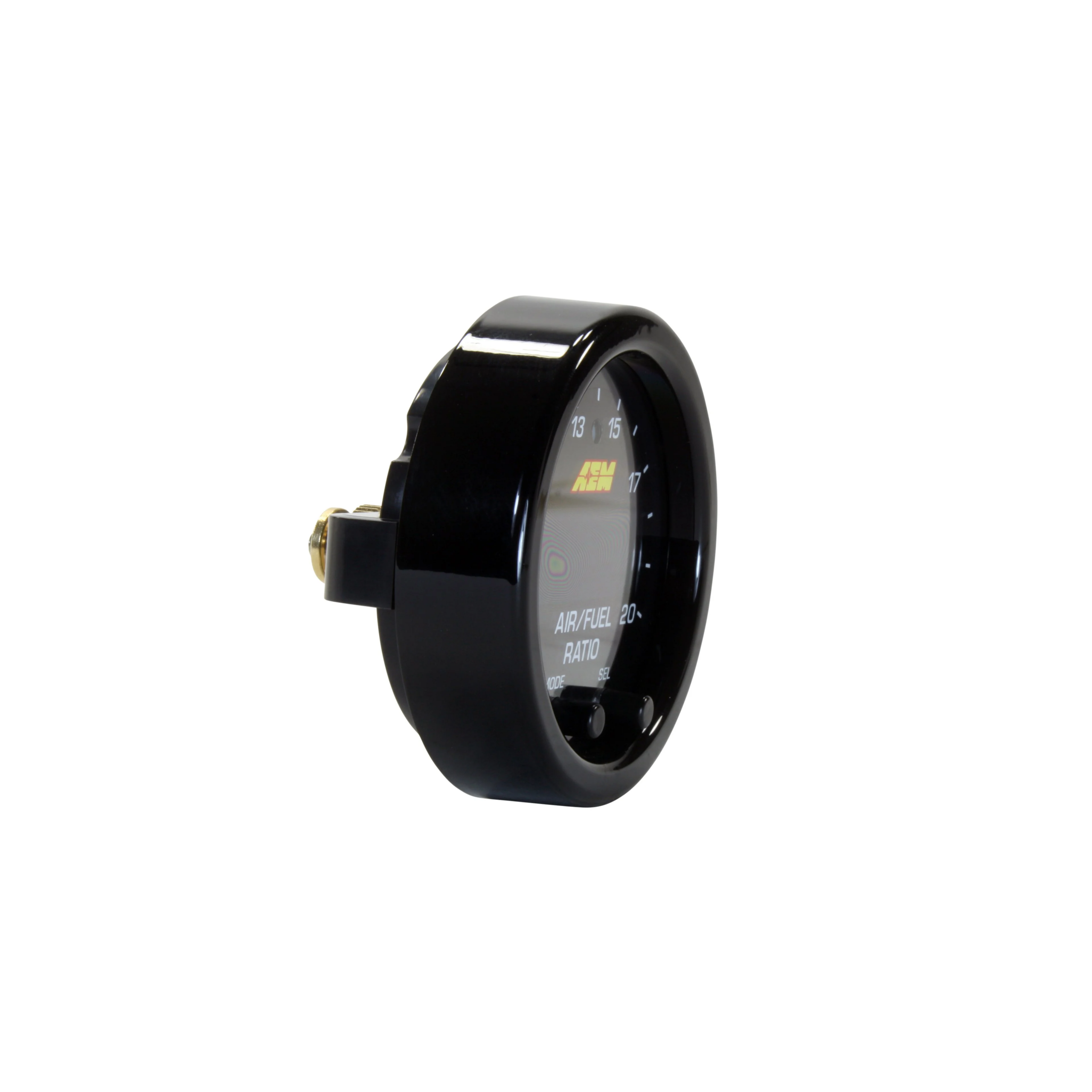

AEM Digital Air / Fuel Ratio Guage Universal - Image 2

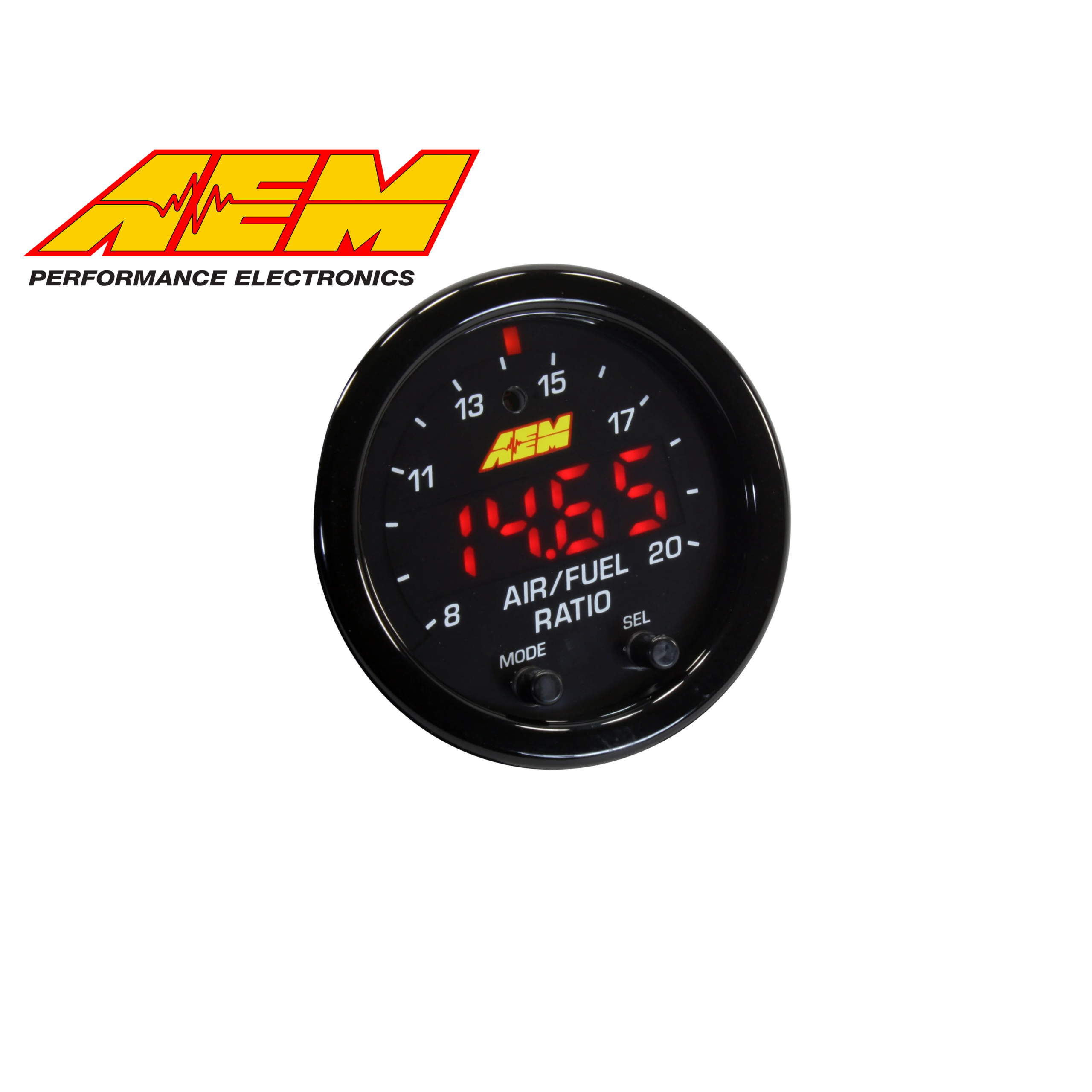

AEM Digital Air / Fuel Ratio Guage Universal - Image 3

AEM Digital Air / Fuel Ratio Guage Universal

SKU: 30-0300

950.00 AED

AEM's X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patented 100% Digital technology (Patent 9,575,030) that makes them the fastest responding wideband air/fuel ratio controllers in independent testing*. The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN AEM 30-0300) measures 2 1/16th-inch (52mm) in diameter and features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM Wideband Gauge's center display. This creates the perception of a larger overall gauge, but in a common 52mm size for easy mounting. Its slim depth (less than one inch overall) and ultra-slim cup depth of .200-inches dramatically increases its application base and potential mounting locations.
Add to wishlistAdd to compare
ENQUIRY!
Category:

Description

  • X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
  • Patented X-Digital wideband technology (Patent 9,575,030)
  • AEM co-developed the new sensor with global automotive supplier FAE, culminating in a new sensor design that has a faster response time than the Bosch 4.9 LSU and is less prone to failure in high performance vehicles
  • Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
  • Compatible with vehicle/system voltages up to 16V
  • 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
  • Can display AFR values in hundredths of %
  • 52mm gauge diameter and slim 0.825″ gauge depth
  • Gauge cup depth only .200″ deep!
  • Auto dimming feature

Brand

AEM
