Description

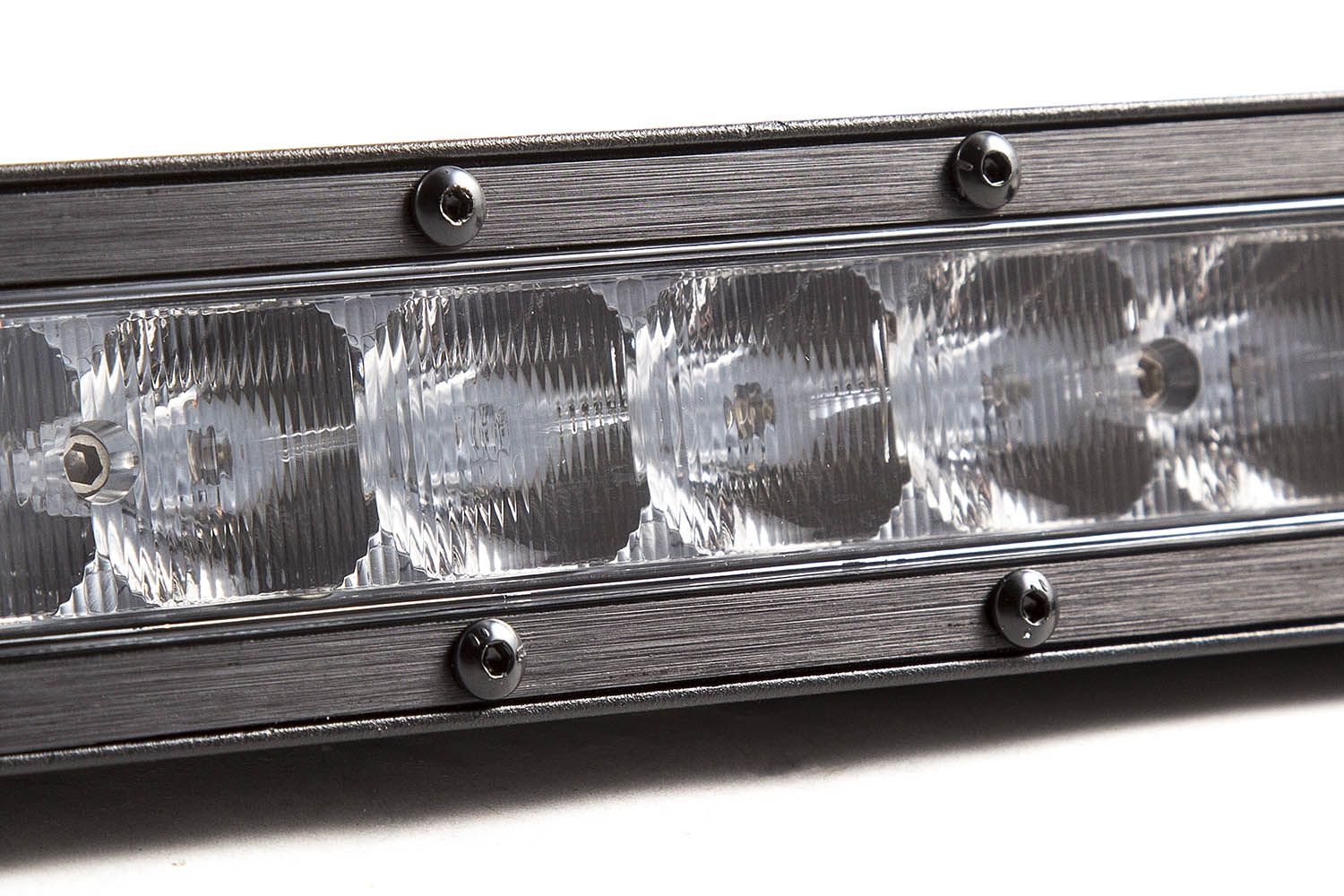

- Advanced TIR optics provide high efficiency and focus
- High-intensity automotive-type LEDs with amber color

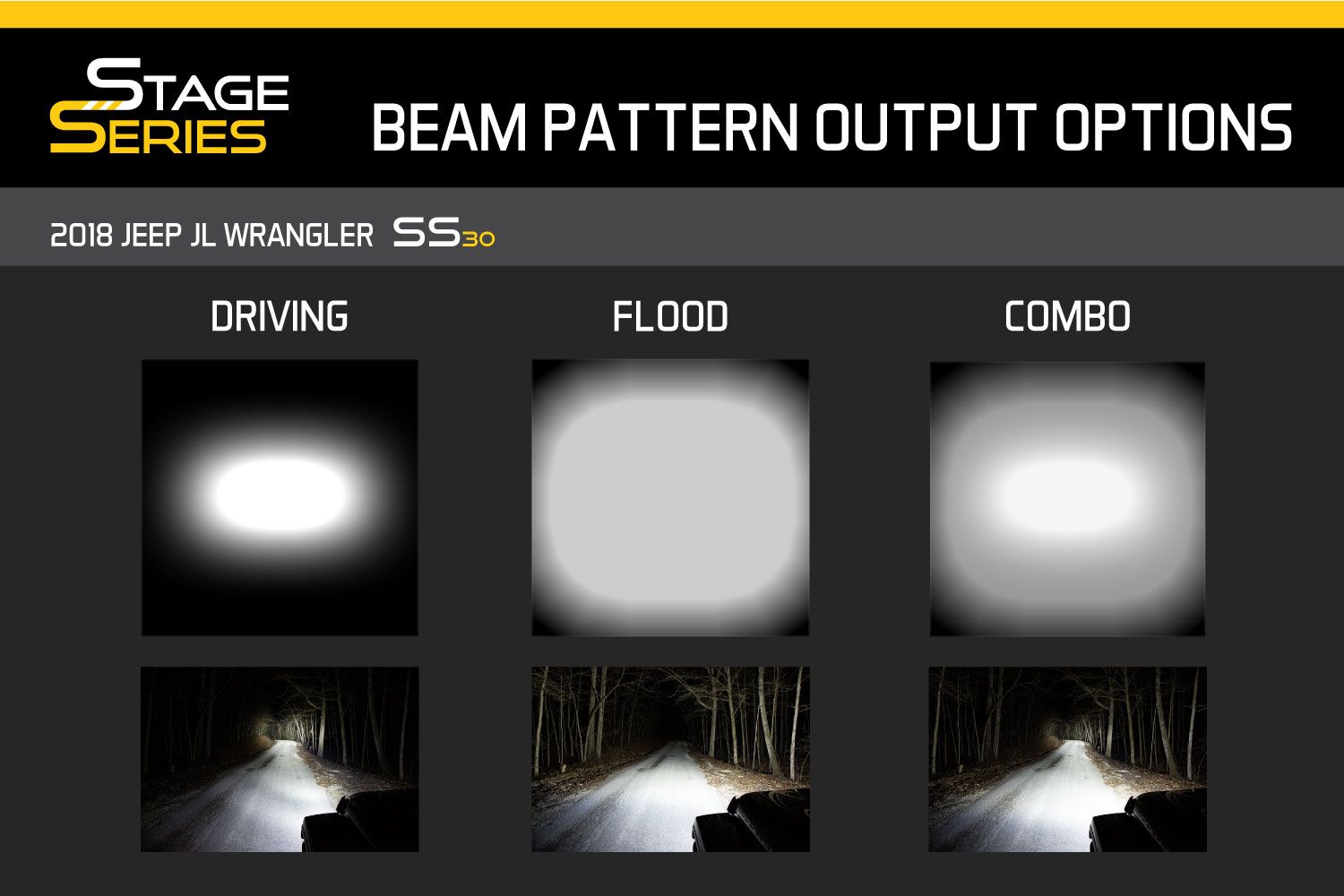

- Available in Driving, Flood, or Combo beam patterns
- Slim 42mm housing for low-profile fitment
- Durable matte powdercoated extrusion
Color Temp (CCT):Â 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
Power (watts):Â 137.2
Operating Voltage:Â 9-24V
Current (amps @ 14V):Â 9.8
Polarity:Â Polarity Specific
Operating Temperature:Â -40C to 85C (-40F to 185F)
LED Emitter:Â Luxeon Z ES
Connector(s):Â Deutsch DT Input
Cooling:Â Passive, heatsink
Intrusion Ratings:Â IP68 Waterproof
Product Dimensions (in):Â 31x3x1.63 If you would like CAD for your project, please contact us.
